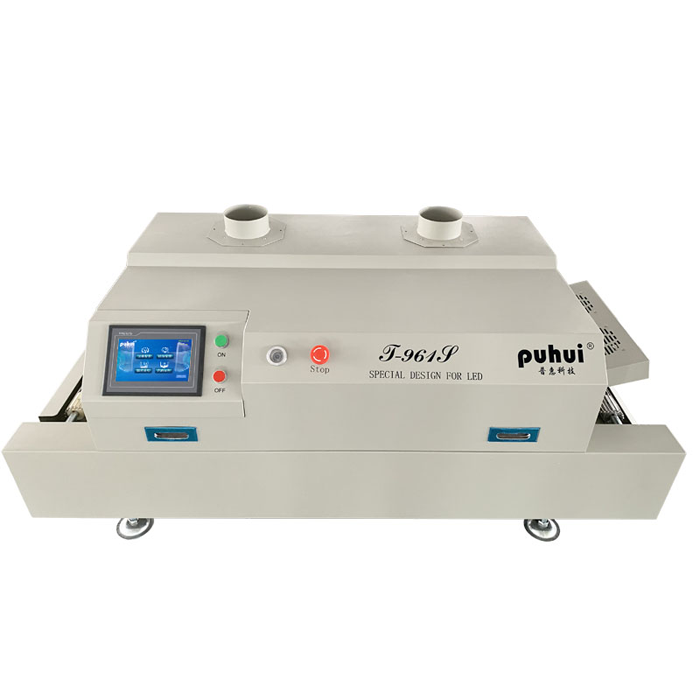

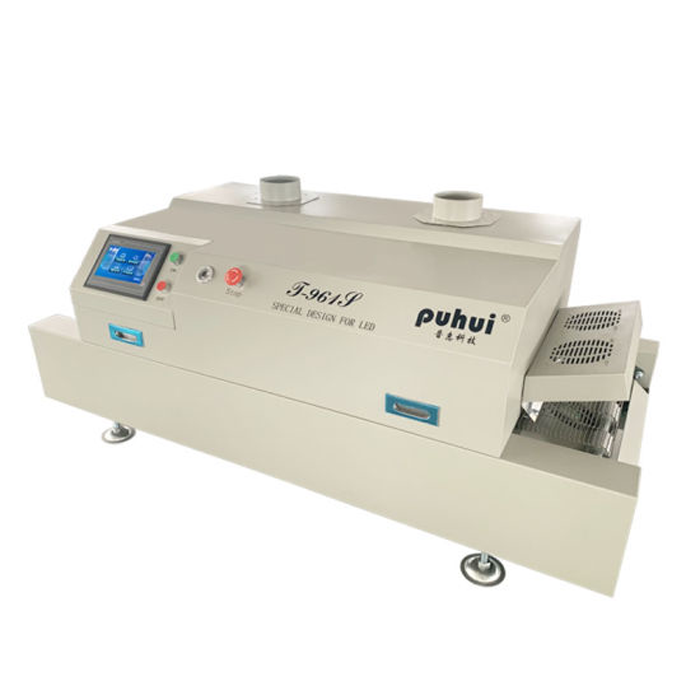

T-961S
Smart touch screen PCB welding machine T961S six heating zones SMT infrared conveyor Reflow Oven.
Smart touch screen PCB welding machine T961S six heating zones SMT infrared conveyor Reflow Oven.
| ● This machine selects the intelligent level sirocco and rapid infrared heating technology. |
| ● This machine is equipped with the crawler-type and five temperature area heating systems. |
| ● Intelligent temperature wave heating type, oversized capacity wave selection, has eight temperature waves can satisfy various welding technological requirements. |
| ● Use programmable technology, preset the temperature wave memory storage function, can complete the whole welding process automatically according to your presetting wave. |
| ● Adopt the thermocouple temperature measurement and add the compensation circuit, make the temperature measurement more accurate, the wave more perfect. |
| ● Use PID intelligent temperature control technology; make the temperature control more accurately. |
| ● Transmission system adopt imported frequency conversion motor, PID closed-loop speed, equip with all the import 1:150 turbine speed reducer, smooth operation, speed adjustable range 0-1600mm/min. |
| ● Adopt independent wheel structure and special stainless steel strut, durable wear-resisting runs smoothly, speed precision can reach + 10mm/min. |
| ● Independent cooling zone, to ensure the PCB board of low temperature when the required. |
| ● Friendly human-machine operation interface, perfect LCD display, no need to connect with the PC, can watch the whole repairing process very clearly. |
| ● Ergonomic design, practical and easily operated. Good build quality but at the same time light weight and a small footprint allows the T-960 to be easily bench positioned, transported or stored. |
| Model | : | 961S |
| The Heating Zone Quantity | : | Upper 4/Down 2 |
| The Length of the Heating Zone | : | 1000mm |
| The Heating Type | : | IR and Hot Air Heating |
| The Cooling Zone Quantity | : | 1 |
| Maximum width of PCB Board | : | 350mm |
| The Operation Direction | : | Left to Right |
| Delivery Options | : | Net Transmission + Chain Transmission |
| The Speed of Conveyor Belt | : | 0-600mm/min |
| The Power Supply | : | 3 Phase 5 Lines 220VAC/380VAC |
| Peak Power | : | 11KW(220/380VAC) 50/50Hz |
| Average Power | : | 6.5KW(220/380VAC) 50/50Hz |
| Heating up Time | : | Around 20mins |
| Temperature Control Range | : | Room Temperature~300C |
| Temperature Control Mode | : | PID Closed-Loop Control |
| Temperature Control Accuracy | : | ±1°C |
| Temperature Distribution Deviation | : | ±2°C |
| Overall Dimensions | : | 1520mm X 694mm X 567mm |
| Package Dimensions | : | 1600mm X 830mm X 700mm |
| Net Weight | : | 110KGs |
| Gross weight | : | 160KGs |
