T-937M

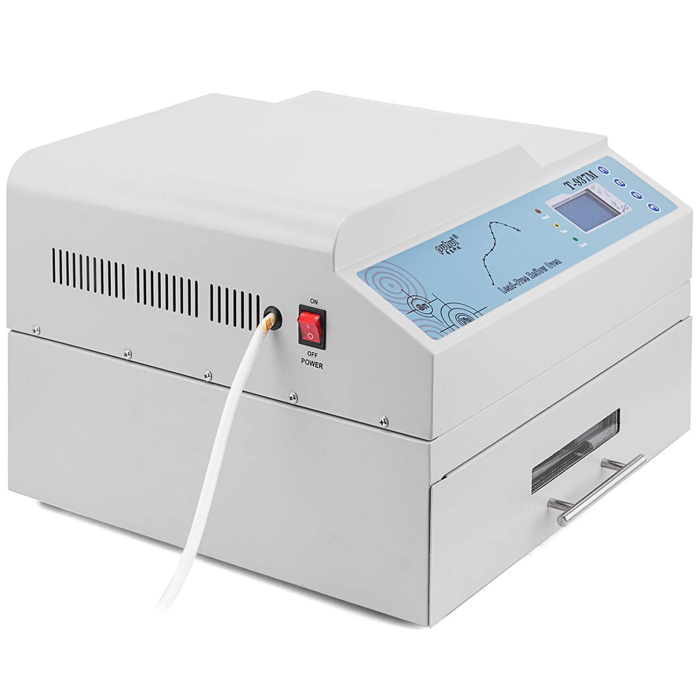

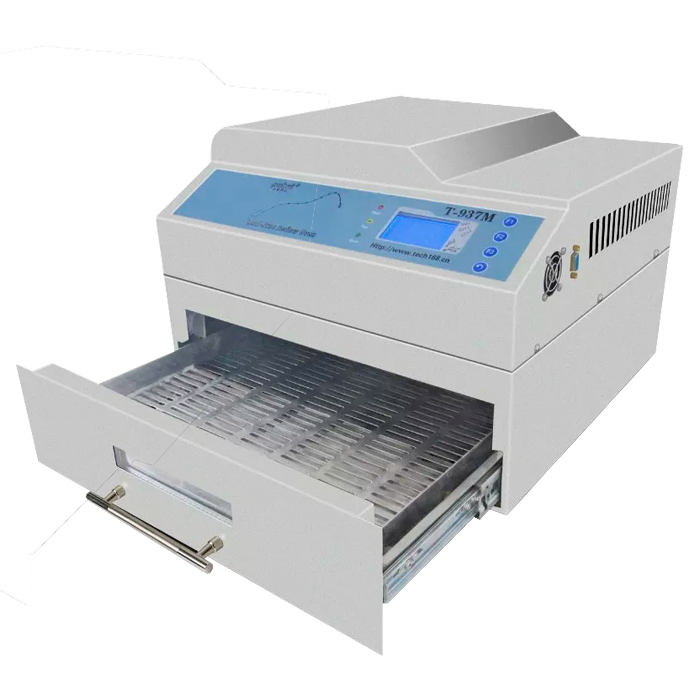

The T-937M Desktop Reflow Oven is a Lead-free (RoHS) Reflow Soldering Station designed for efficient and precise PCB assembly. It features PC connectivity, allowing users to easily input, set, transmit, adjust, save, and manage soldering wave data through intuitive control software with graphical displays. The oven supports multiple soldering curves, ensuring flexibility for various applications, and utilizes advanced MCU and intelligent temperature measurement technology for stable and even heating. With a temperature range up to 350°C, it is suitable for single and double-sided PCBs. Compact and user-friendly, the T-937M is an ideal solution for small-scale production and prototyping.

Features

● This oven solder lead free paste (RoHS) very well.

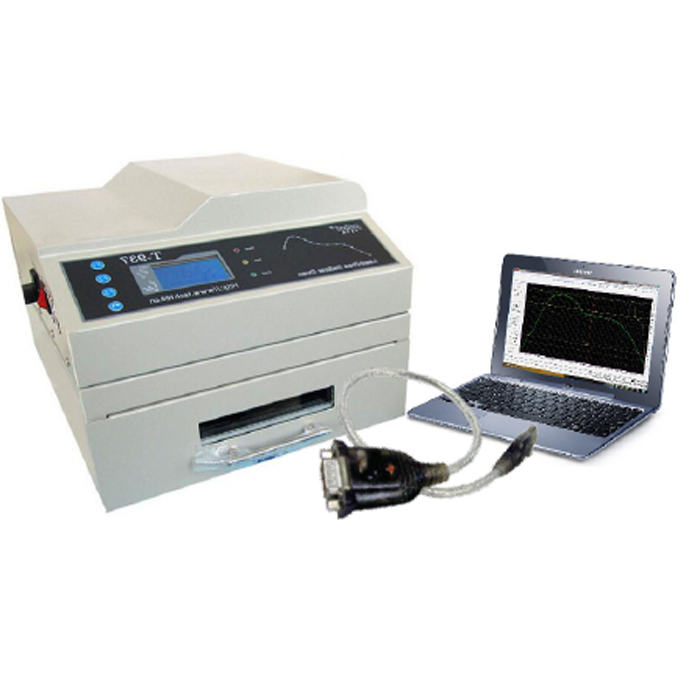

● This oven can connect with PC, easy to input/set/transmit/adjust/save/manage wave data.
● Many kinds wave input style in control software, easy to set wave.
● The control software is with graphical display, display the wave intuitively.
● Adopt stable and high-speed MCU and advanced intelligent temperature measurement technology, temperature in the oven is very stable, exact and even.
● Friendly human-machine operation interface, perfect LCD display, very easy to operate.
● Thermostatic timer function.
● Add the compensation circuit, make the oven temperature keep stable from different environment.

Technical Parameters

Soldering Area : 350mmX400mm
Dimension : 473mmX466mmX290mm
Net. Weight : 20.7kg
Voltage/Frequency : AC220～230V/50～60Hz
Power Rating : 3300W
Cycle Time : 2～16 min
Temp Range : Room Temp ～350℃
