SP-2535

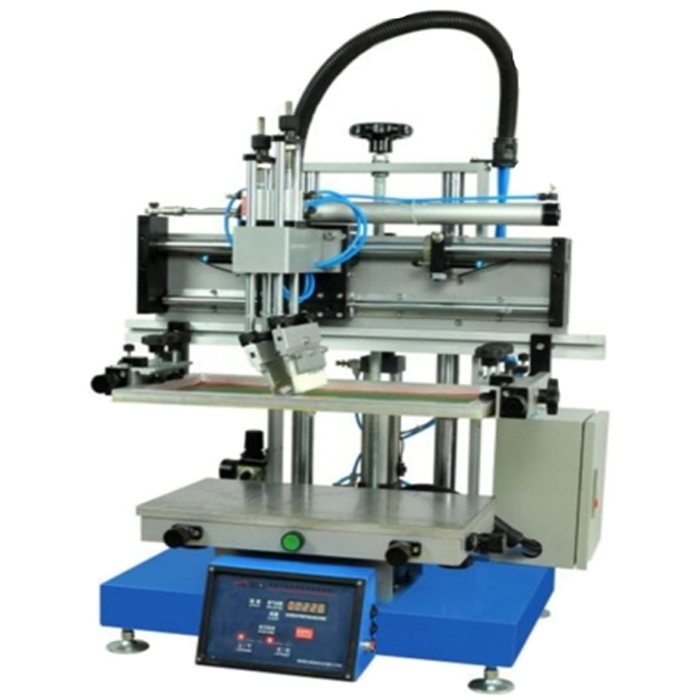

The SP-2535 Semi Auto Solder Paste Printer is a versatile and efficient tool for applying solder paste during PCB assembly. As a semi-automatic machine, it combines the benefits of automatic operation with manual alignment and PCB loading, offering flexibility for small to medium-scale production. The printer features a scraper that moves freely up and down, automatically adjusting its level with the stencil, ensuring consistent and precise solder paste application. Its embedded control system ensures stable performance, while the high-rigidity structure and pneumatic systems maintain accuracy. With an adjustable arming base to fit various PCB sizes and a rotatable printing knife for easy cleaning and stencil replacement, the SP-2535 is a reliable and user-friendly solution for modern electronics manufacturing.

Features

● Embedded Control System to ensure working stabilized & reliable.
● High Rigidity structure and linear rails ensure the stability and precision of printing.
● This printer can automatically set the running parameters to comport with all kind of products and get best performance according to different characteristic of glue and solder paste.
● Flexible arming base with the arms can be adjusted toward right or left to match different size of PCB.
● The printing knife can be rotated 45c upward then fixed to convenient for the clean & replace of knife and stencils. Calibration method is to use the movement of stencil to match with X, Y, Z of printing base.

Technical Parameters

Worktable Size : 300x500mm
Frame Size : 400x600mm
PCB Size : 250x350mm
Air Pressure : 6 bar
Packing size : L820xW650xH820mm
G.W : 80Kg
