SP-2545

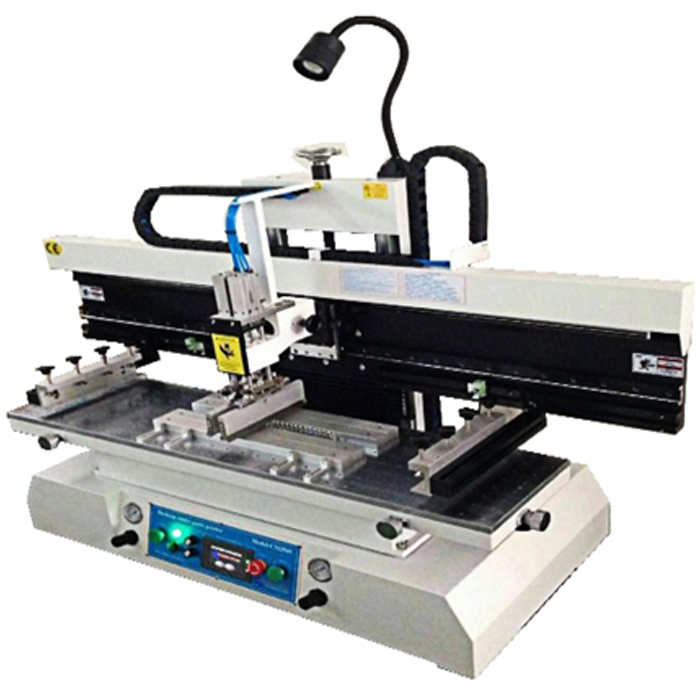

The SP-2545 is a semi-automatic solder paste printer controlled by a PLC and HMI system, ensuring stable and reliable performance. It supports PCBs up to 1200mm in size and features a high-rigidity structure with linear rails for enhanced stability and precision during printing. The machine can automatically adjust running parameters to suit various product characteristics and achieve optimal performance for different glue and solder paste types. Its flexible arming base allows adjustments to match different PCB sizes, while the printing knife can rotate 45° upward for easy cleaning and stencil replacement. Manual alignment and loading ensure versatility, with calibration achieved through stencil movement to match the X, Y, and Z axes of the printing base, making it a highly efficient and user-friendly tool for PCB assembly.

Features

● PLC and HMI Controlled System to ensure working stabilized & reliable.
● Supports up to 1200mm PCBs.
● High Rigidity structure and linear rails ensure the stability and precision of printing.
● This printer can automatically set the running parameters to comport with all kind of products and get best performance to different characteristic of glue and solder paste.
● Flexible arming base with the arms can be adjusted toward right or left to match different size of PCB.
● The printing knife can be rotated 45c upward then fixed to convenient for the clean & replace of knife and stencils. Calibration method is to use the movement of stencil to match with X, Y, Z of printing base.

Technical Parameters

Worktable Size : 320x1250mm
Frame Size : 550x1480mm
PCB Size : 300x1220mm
Air Pressure : 6 bar
Packing size : L1650xW680xH1200mm
G.W : 270Kg
