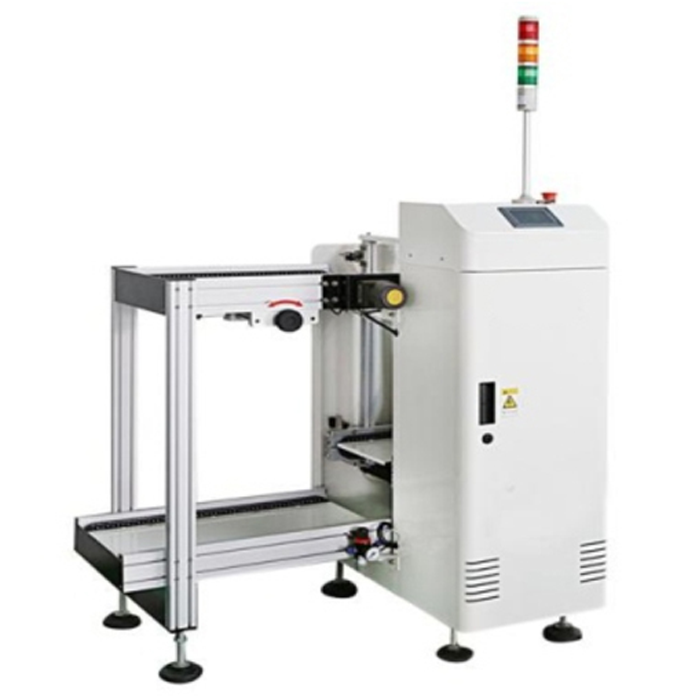

JB-250 (Auto Loader)
The PCB loader usually used for loading of PCB board during SMT assembly process.
The PCB loader usually used for loading of PCB board during SMT assembly process.
| ● Special Aluminum Alloy guide rails and rubber belt |
| ● Magazine lifting with screw rod by 90W electrics brake motor which made in Taiwan |
| ● Transport Motor used 15W stable speed motor made in Taiwan |
| ● Pneumatic PCB clamping structure |
| ● Programmable Mitsubishi PLC and Controller |
| ● PCB Automatically loading to conveyor |
| ● Pneumatic Component (Push plate cylinder with screw adjustment position) |
| ● One set Electric control box |
| Machine Size (L*W*H) | : | 1100mm*780mm*1200mm, ±30mm |
| Magazine Size (L*W*H) | : | 355mm*320mm*565mm |
| PCB Max Size (L*W*H) | : | 330mm*250mm |
| Direction | : | R-L, L-R |
| Automatic Lifting Distance | : | 10, 20, 30 and 40mm |
| Transport Height | : | 920mm, ±30mm |
| Operation Control System | : | Touch Panel Controlled Interface |
| Power | : | 220VAC, 50Hz |
| Air Pressure | : | 0.4-0.6MPa |
| The Max Store PCB Quantity | : | 50Pcs |
