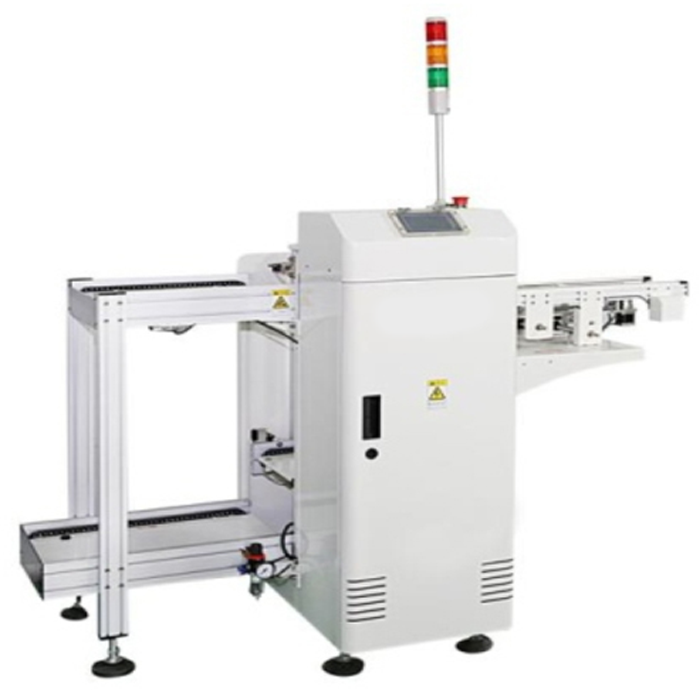

JB-350 (Auto Unloader)

A PCB unloader is a specialized machine used in electronics manufacturing to efficiently handle and unload printed circuit boards (PCBs) from production lines or magazines. It is designed to automate the process of transferring PCBs after assembly or inspection, ensuring smooth workflow and reducing manual labor. PCB unloaders often feature adjustable settings to accommodate various PCB sizes and thicknesses, and they may include advanced features like sorting defective and non-defective boards, SMEMA compatibility, and user-friendly control systems. These machines are essential for maintaining efficiency and precision in high-volume PCB production environments.

Features

● Special Aluminum Alloy guide rails and rubber belt
● Magazine lifting with screw rod by 90W electrics brake motor which made in Taiwan
● Pneumatic PCB clamping structure
● Programmable Mitsubishi PLC and Controller
● PCB Automatically loading to conveyor
● Attach one set 0.7meter length PCB Conveyor
● One set Electric control box

Technical Parameters

Machine Size (L*W*H) : 1700mm*780mm*1200mm, ±30mm
Magazine Size (L*W*H) : 355mm*320mm*565mm
PCB Max Size (L*W*H) : 330mm*250mm
Direction : R-L, L-R
Automatic Lifting Distance : 10, 20, 30 and 40mm
Transport Height : 920mm, ±30mm
Operation Control System : Touch Panel Controlled Interface
Power : 220VAC, 50Hz
Air Pressure : 0.4-0.6MPa
The Max Store PCB Quantity : 50Pcs
