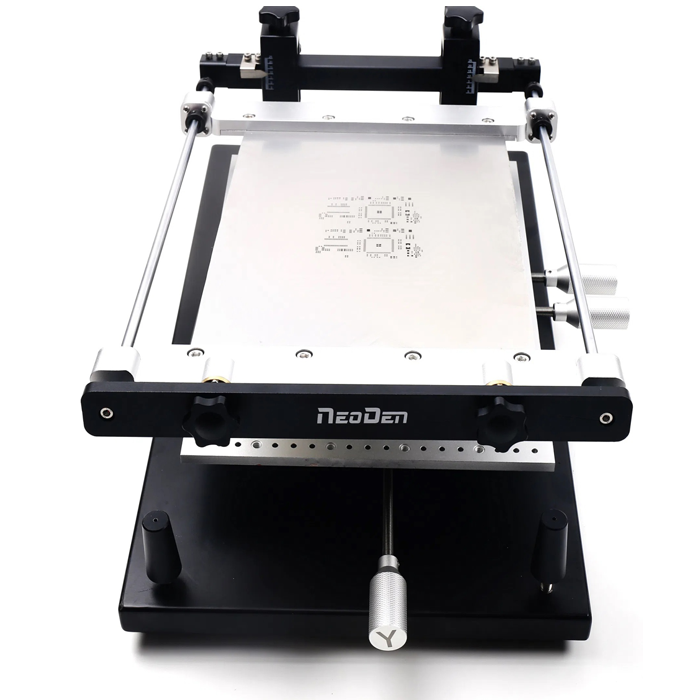

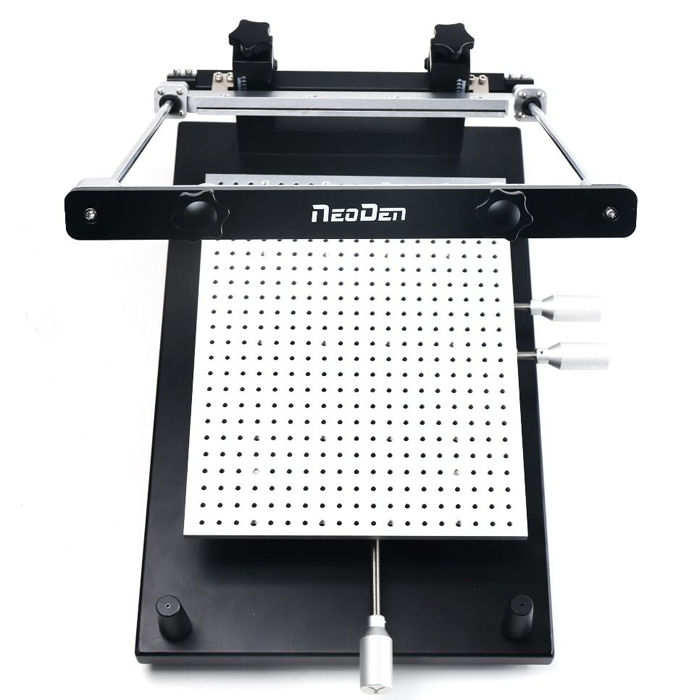

FP-2636 Frameless

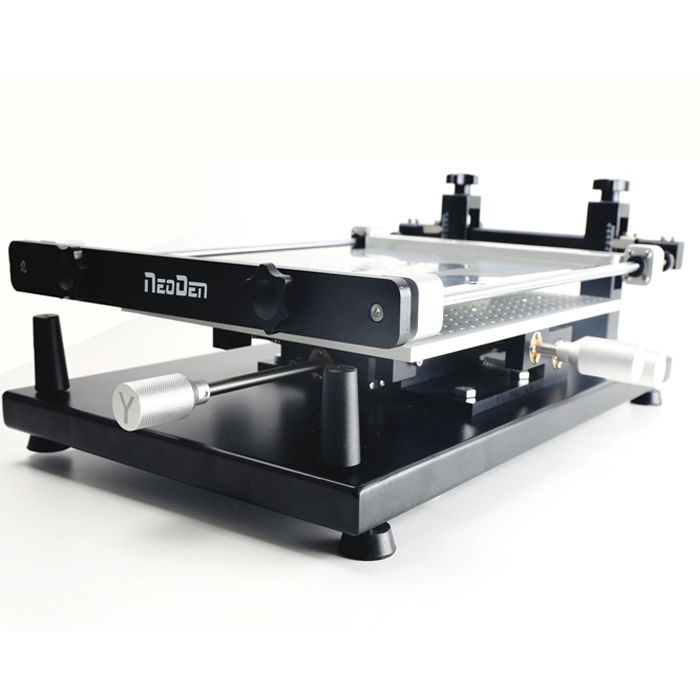

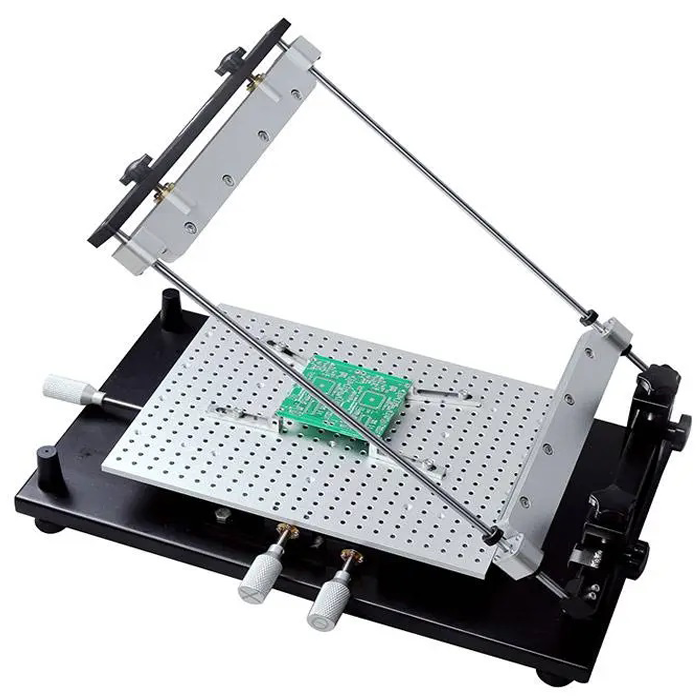

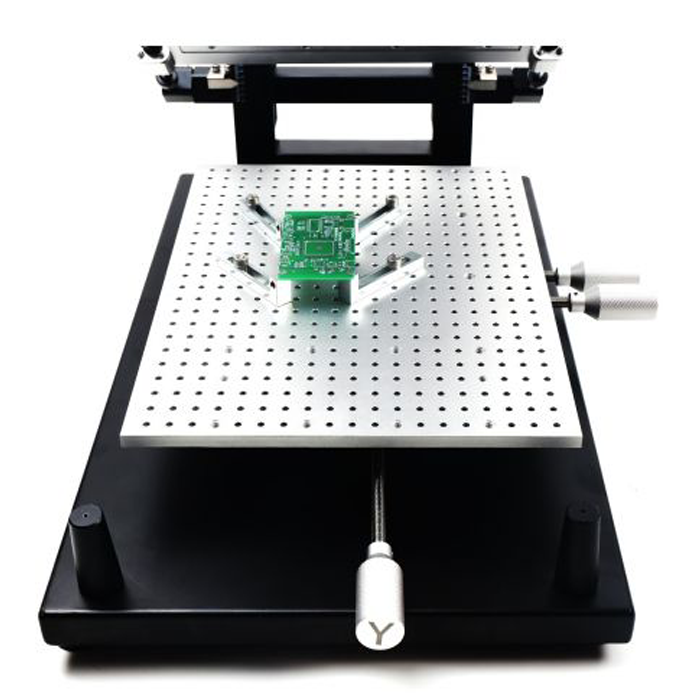

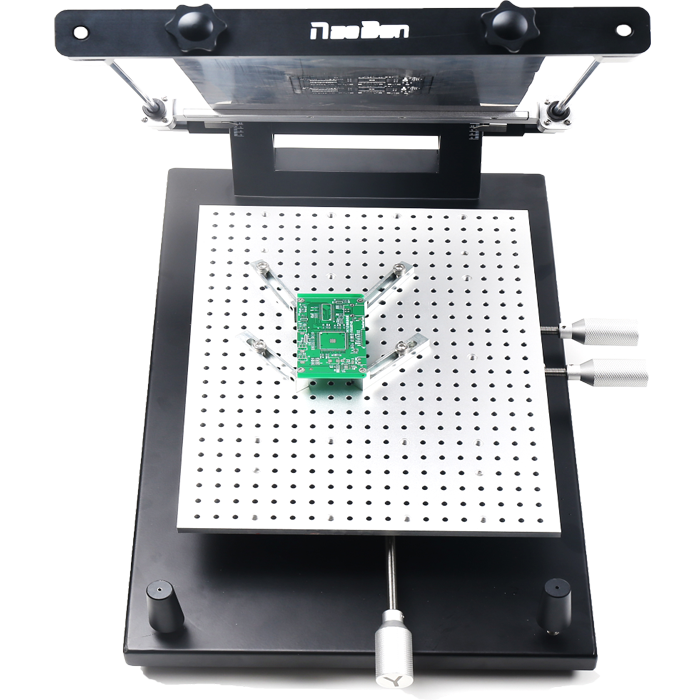

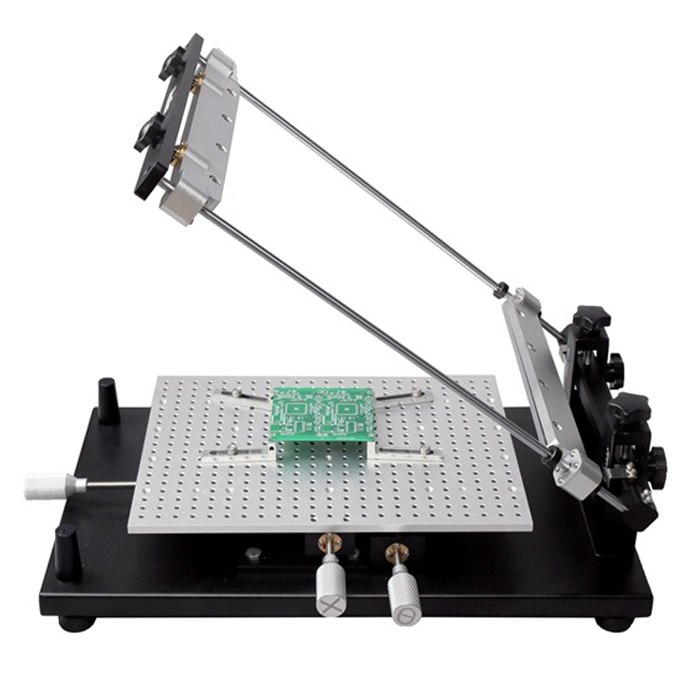

The NeoDen FP-2636 Frameless Manual Solder Printer is designed for precise and efficient solder paste application during PCB assembly, featuring a frameless design that simplifies the process for both single-sided and double-sided PCBs. With adjustable fine-alignment features and a compact, user-friendly design, it is ideal for prototyping and small-scale production, ensuring consistent and high-quality results that enhance the reliability of electronic manufacturing. Its operation involves clamping a stencil into the printer, placing the PCB on locator fixtures, aligning the solder pads with the stencil holes using Vernier controls, and applying the solder paste with the included squeegee blade, making it a straightforward and reliable tool for critical steps in the SMD process.

Features

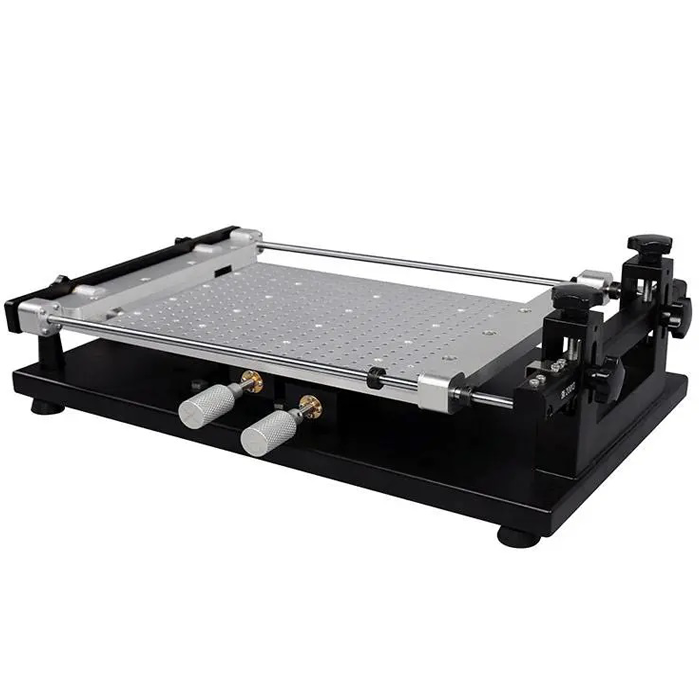

● Frameless Design: Simplifies the soldering process, making it suitable for both single-sided and double-sided PCBs.
● Compact and User-Friendly: Designed for ease of use during prototyping and small-scale production.

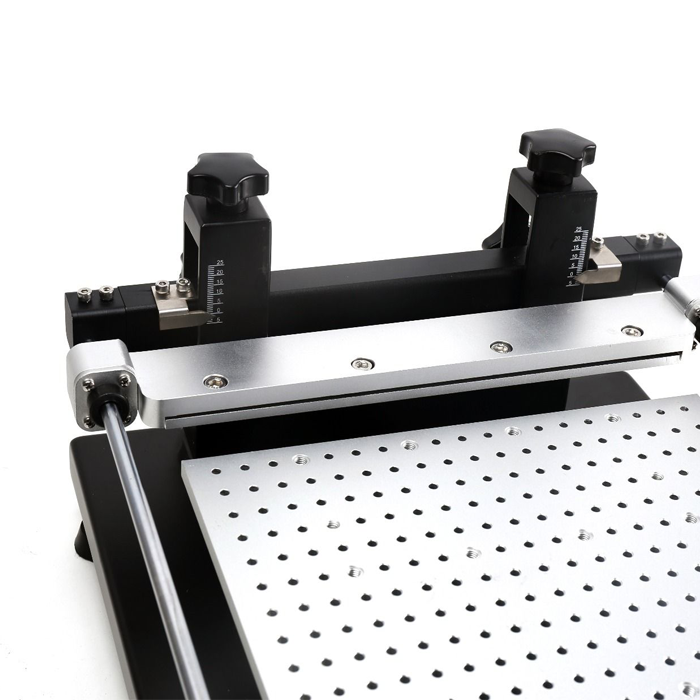

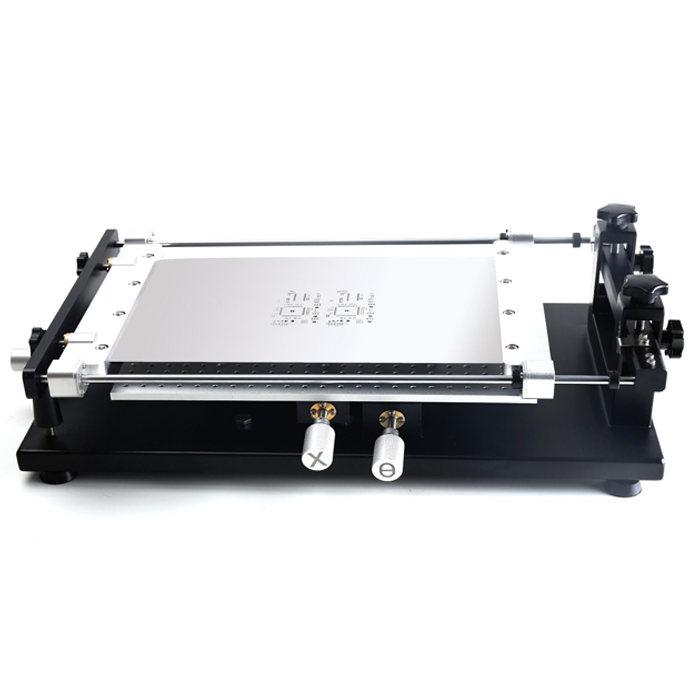

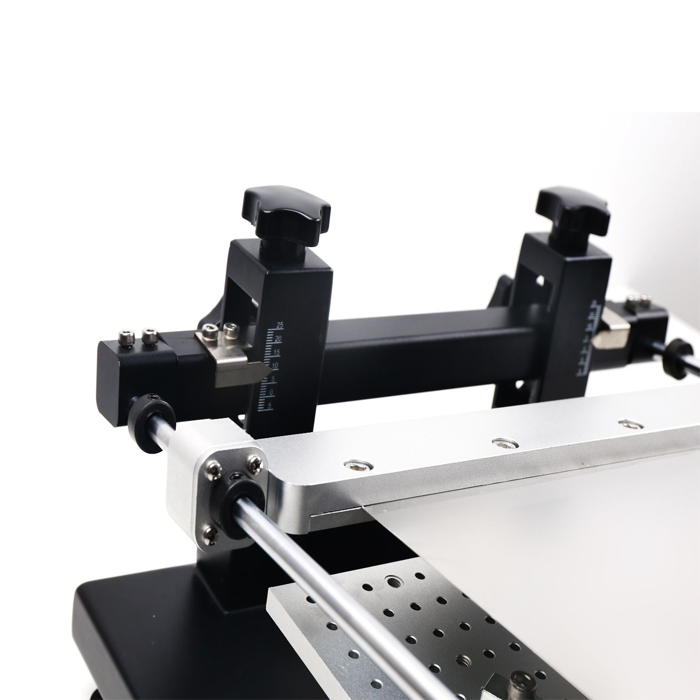

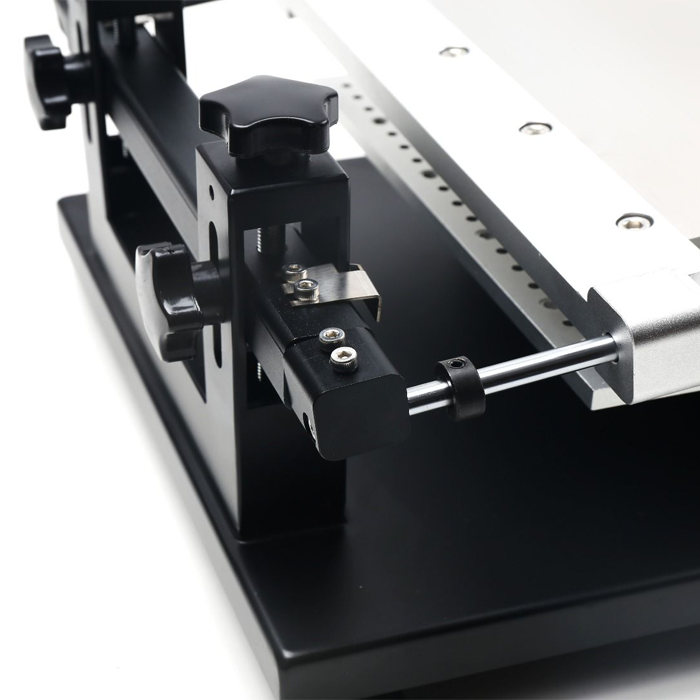

● Precise Alignment: Equipped with Vernier controls for aligning solder pads with stencil holes perfectly.
● High-Quality Results: Ensures consistent and accurate solder paste application, enhancing reliability.

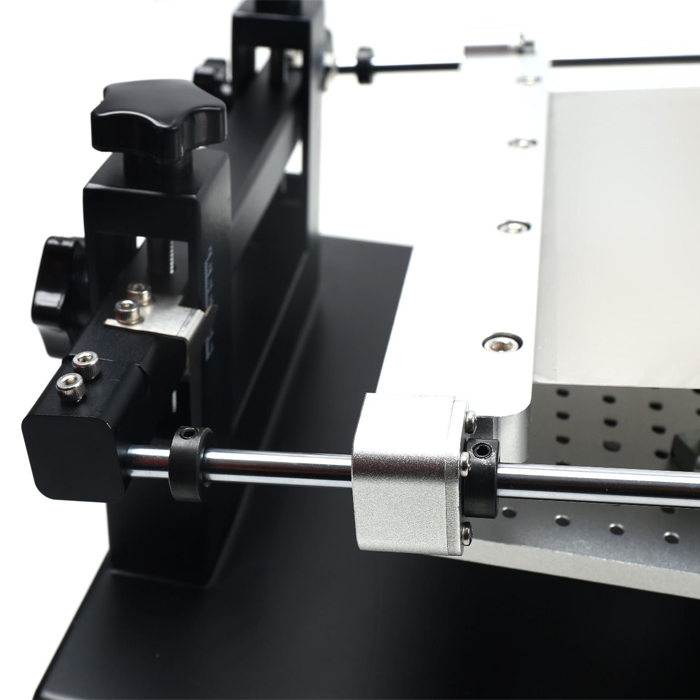

● Adjustable for Fine Tuning: Offers flexibility to adapt to various PCB requirements with precise adjustments.

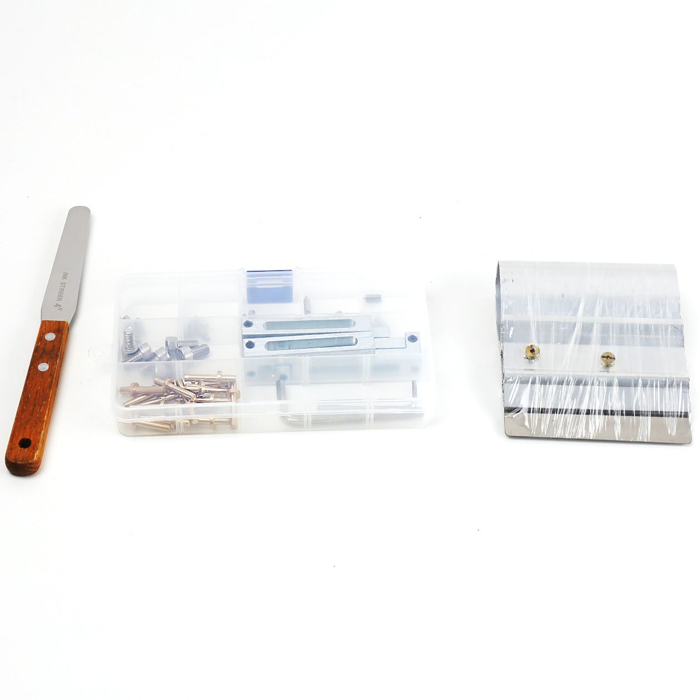

● Squeegee Blade Included: Comes with an included blade for seamless solder paste application.

Technical Parameters

Max PCB Size : 280mm x389mm
Min PCB Size : 10mm x 5mm
Screen Stencil Size : 260mm x 360mm
Printing Speed : Labor Control
PCB Thickness : 0mm - 20mm
PCB Thickness : 0mm - 20mm
Platform Height : 190mm
Repeatability : ± 0.01mm
Max Rotation Angle : ± 15°
Positioning Mode : Outside / Reference Hole
Fine Adjustment Range : Z-axis ± 15mm X-axis ± 15mm Y-axis ± 15mm
Positioning Pin Size : 1mm / 1.5mm / 2.0mm / 2.5mm / 3.0mm
Dimensions : 660mm x 470mm x 245mm
Net Weight : 12Kgs
Gross Weight : 14Kgs
