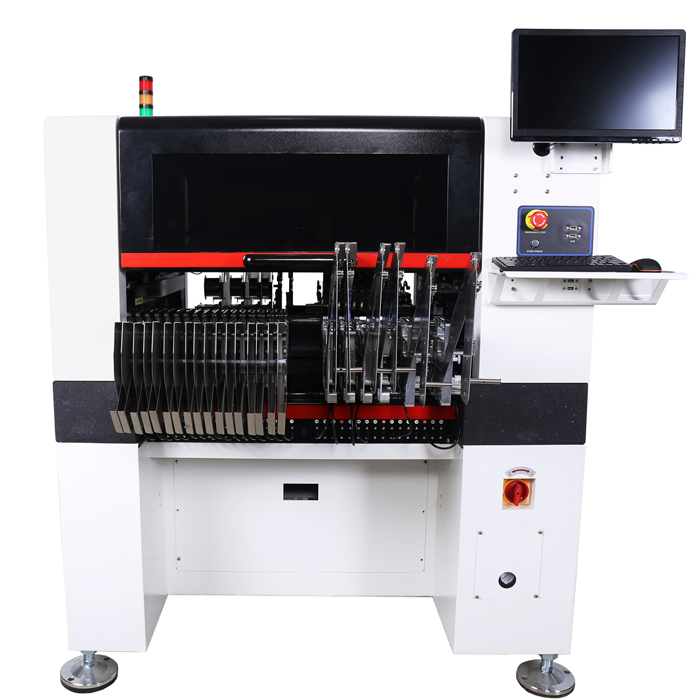

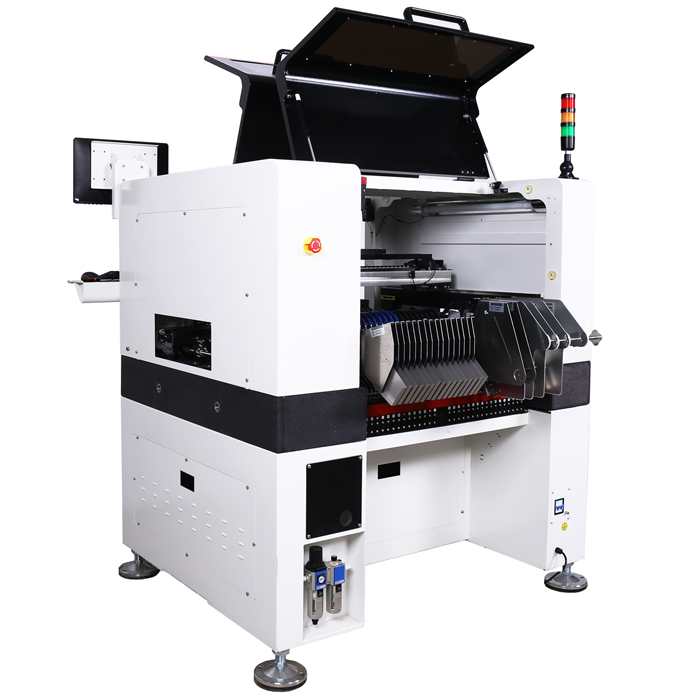

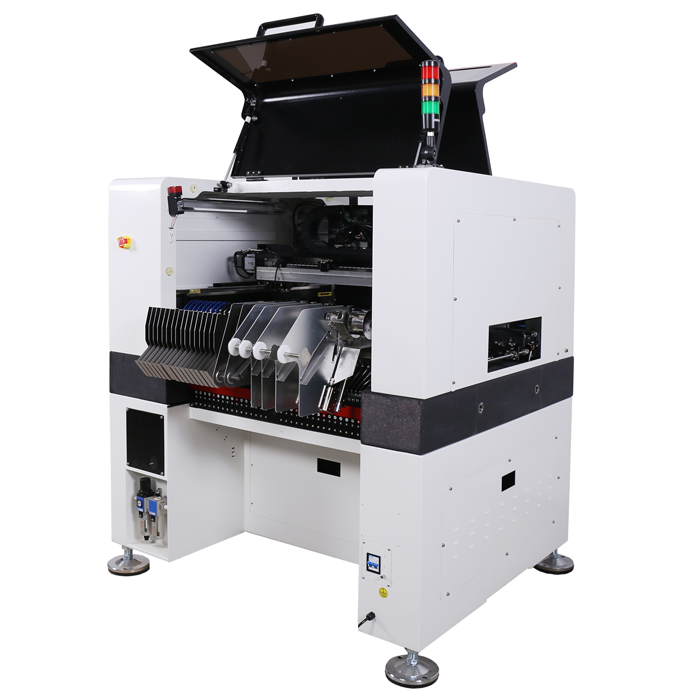

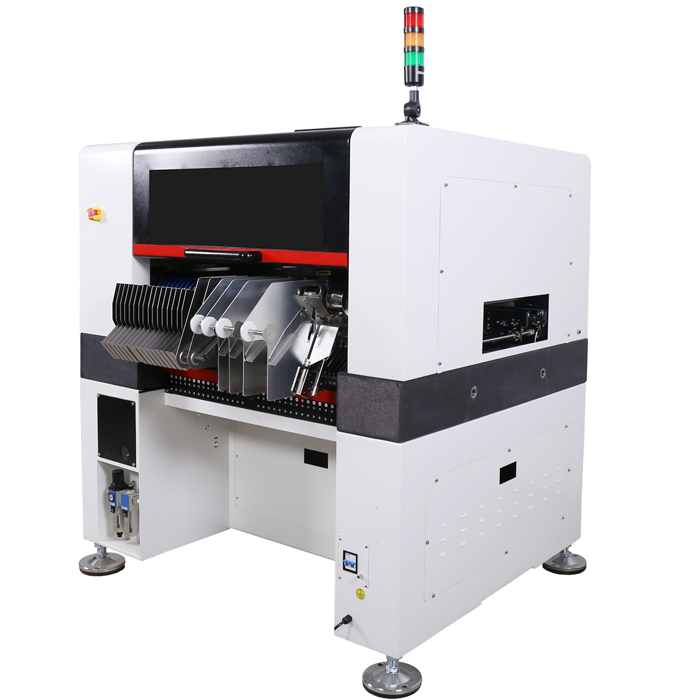

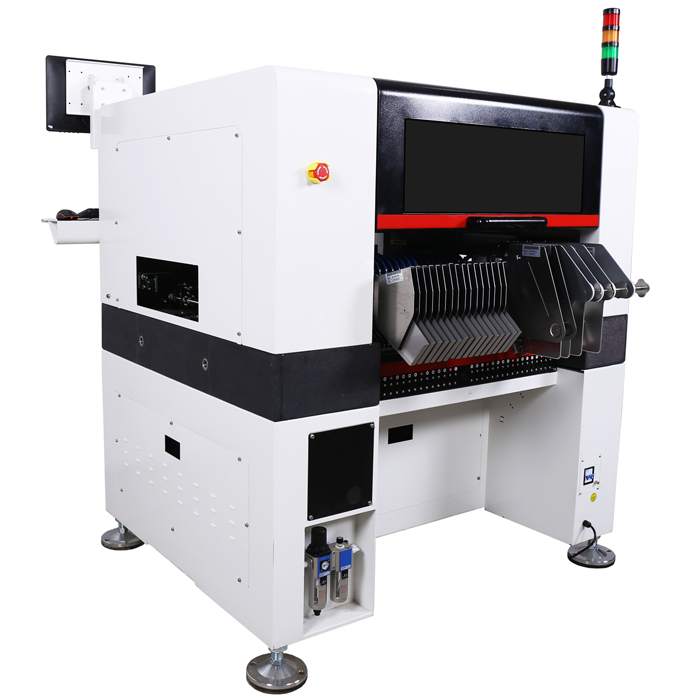

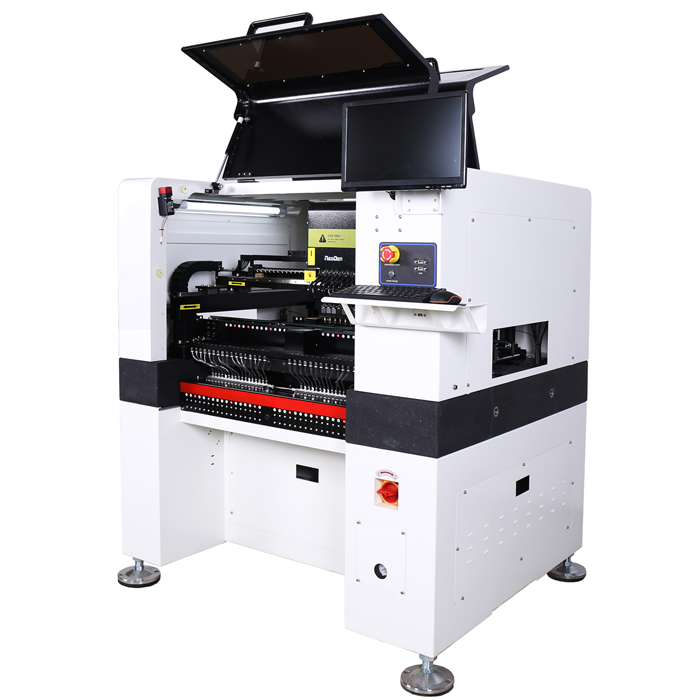

NeoDen N10 features 8 simultaneous pick-up heads, has been designed for ease of use, efficiency, cost effectiveness and increased expand ability and compatibility. Using new, highly efficient linear servomotors, lightening and stiffening the head unit, and reviewing the placement speed of 18,000 CPH.
| ● 8 Synchronized Nozzles which ensure a repeatable placement accuracy with high speed. |
| ● Machine runs on highly stable and secure Linux operating system. |
| ● Moving to a ball-screw mounting system has improved accuracy, increased speed, improved wear, durability and reduced noise. |
| ● Double mark cameras to reach at extreme end feeders for better calibration. |
| ● High resolution and high-speed component camera system improves the overall speed of the machine. |
| ● Ethernet communication interface for all internal signal travel makes the machine to perform more stable and flexible |
| ● Closed loop Servo control system with feedback makes the machine to function more accurate. |
| ● Picking location of pneumatic feeder can be calibrated automatically and promptly, to ensure easy operation and high efficiency. |
| ● PCB location can be calibrated automatically and promptly, based on the correct and specific placement request. |
| ● The screw used in the machine is a C5 precision ground screw, with an accuracy of 0.018mm and Equips with the magnetic scale technology. |
| Model | : | Neoden N10 |
| Placement Head Gantry | : | 8 Nozzles Head |
| Vision Alignment | : | Flying Vision |
| Maximum Placement Rate | : | 18000CPH |
| Practice Placement Rate | : | 16000CPH |
| Feeder Capacity | : | 66x Tape / Reel (8mm) |
| Minimum Component Size | : | 0201 |
| Maximum Component Size | : | 1.57" (40mm) Square Body |
| Max. Component Height | : | (Nozzle Z-Axis Max Travel) 0.629" (16mm) |
| Placement Accuracy | : | ±10um |
| Operating system | : | Linux, Software version V8.1.5.5(5) |
| Rotation | : | ±180° |
| Motion Feedback Control | : | (Right-Left) / (Left-Right) SPM/IBG |
| Compressed Air | : | >0.6MPa, max-flow-rate 37L/min | Oil Free |
| Supported Reel Size | : | Tape/Reel (Electric/Pneumatic), Vibration Tube, Waffle Tray |
| Cut Reel Feeder | : | Stack 8mm to 44mm size |
| Max. Board Dimension | : | 19.7" x 11.8" (500mm x 300mm) | Possible lengths up to 1500mm |
| X axis Drive Type | : | WON Linear Guide / TBI Grinding screw C5 - 1632 |
| Y axis Drive Type | : | WON Linear Guide / TBI Grinding screw C5 - 1632 |
| Control System | : | Closed Loop Servo |
| Electricity Supply | : | 220VAC, 500W |
| Type of Feeders | : | Pneumatic + Electrical |
| Type of Feeders | : | Panasonic Servo Motor A6 |
| Vibrating Feeder | : | Selectable |
| Decibel Rating | : | 40-79 dB (μV/m) at 10m |
| Machine Dimension | : | (L*W*H) 51" x 43" x 54" (1300mm x 1100mm x 1375mm) |
| Packaged Dimensions | : | (L*W*H) 56" x 48" x 62" (1430mm x 1210mm x 1570mm) |
| System Weight | : | 2425lbs (1100 kgs) |
| Packaged Weight | : | 2645lbs (1200 kgs) |
