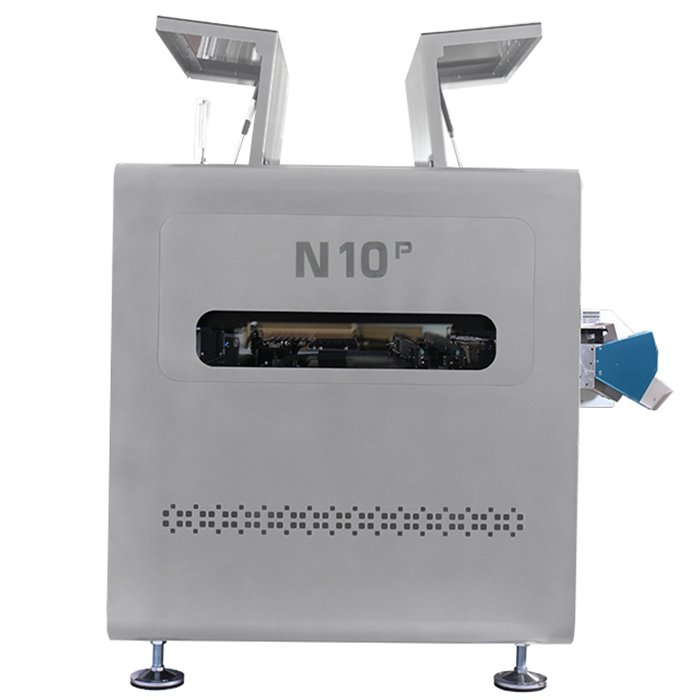

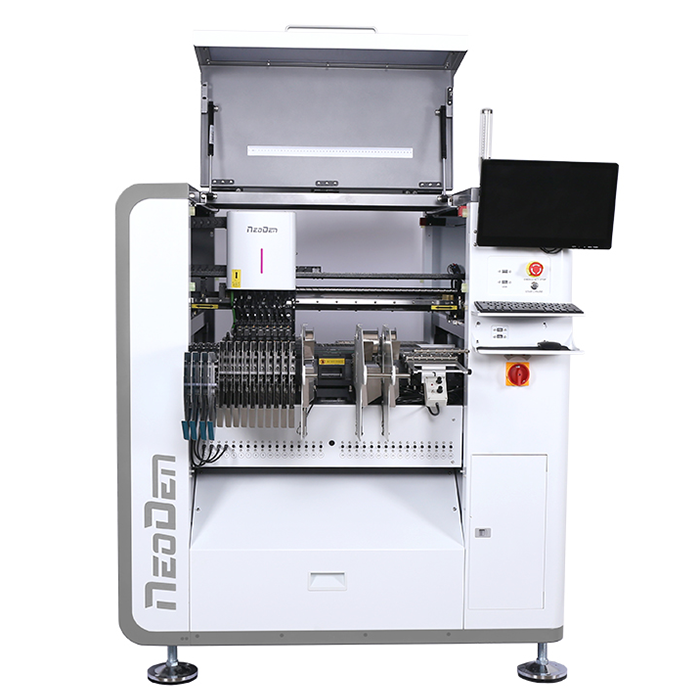

The Neoden 10P is a versatile and advanced PCB assembly machine designed to support large PCBs up to 1500mm x 450mm. It features an automatic nozzle change function with 39 positions, enhancing speed and flexibility. The integrated IC camera ensures precise automatic calibration, while the increased feeder capacity and optimized software design improve ease of use and stability. Additionally, the new design enhances the machine’s professionalism and recognizability
| ● Support PCB within size (L)1500mm*(W)450mm. |
| ● The automatic nozzle change function has been added to the system. Up to 39 nozzle positions to increase the speed and flexibility of integrated placement. |
| ● IC camera improves the size of IC photos and realizes automatic calibration with automatic nozzle change. |
| ● Automatic calibration of nozzle height. |
| ● Increase the convenience of recycling material by adding a throw box |
| ● Increase in the number of feeders to 80 to increase the number of simultaneous feeding capacity |
| ● Increased measuring of suction nozzle air pressure to improve work stability and eliminate obstacles. |
| ● Optimized software design to improve ease of use & stability |
| ● New appearance design to improve product professionalism and recognizability |
| Number of Heads | : | 8 |
| Number of Tape Reel Feeders | : | 80 pcs (33 front + 47 back) |
| Placement Area | : | 450mm Max without IC tray (3*500mm) * 395mm Max with IC tray |
| Operation System | : | Patented SMT Mounting Operation System V1.5 |
| XY Motion Method | : | SPM/IBG Magnetic linear encoder; right-left / left-right |
| XY Drive Motor Feedback Control | : | Panasonic A6/Nidec servo motor |
| Repeat Position Accuracy | : | ±0.01mm |
| Maximum Mounting Speed | : | 20000 CPH |
| Average Mounting Speed | : | 18000 CPH |
| Applicable Components Size (Laser) | : | 0201~22x22mm |
| Applicable Components Size (Vision) | : | 0201~40x40mm |
| Compressed Air Supply Requirement | : | MIN 5kgf/cm² (0.49Mpa) DRY & CLEAN AIR |
| Power Supply Voltage | : | AC110V/220V, 50HZ/60HZ |
| Net Weight | : | 1000 KGS |
| Machine Dimensions | : | (L)1289mm x (W)1254mm x (H)1386mm |
| Package Dimensions | : | (L)1320mm x (W)1290mm x (H)1456mm |
