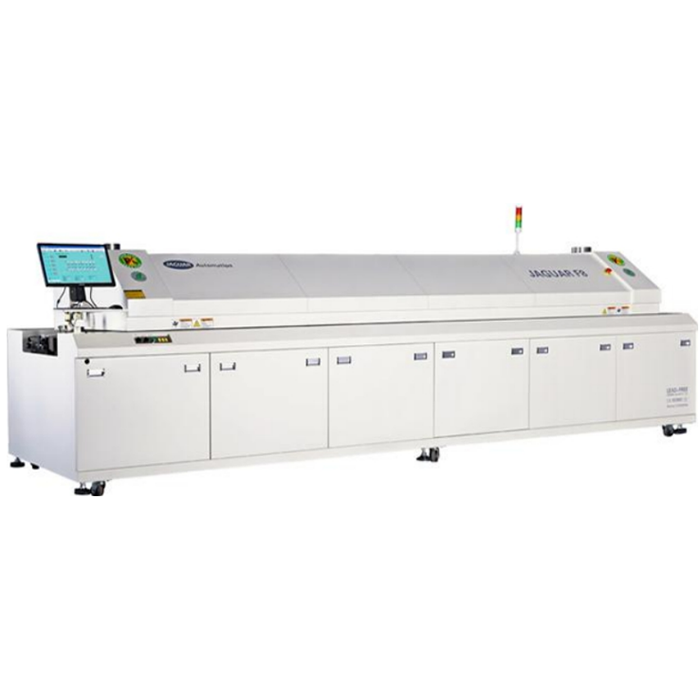

F8

This advanced system features a Siemens PLC with high-precision temperature control (±1-2°C) and Win7 user-friendly operation. It ensures reliability with automatic hood opening, a smooth mesh belt transport, and a computer-controlled mesh/chain transmission. Safety is prioritized with a leakage protector, automatic chain lubrication, and visual/audio alarms. The build-in UPS and delay shutdown system protect against power failures with ERSAs innovative heating mode, independent temperature control, and quick cooling, it delivers efficient, uniform heat. The system also includes password protected operations, real-time temperature monitoring, and easy profile management

Features

● High-Precision Temperature Control: Siemens PLC ensures accuracy within ±1-2°C for optimal performance.
● User-Friendly Operation: Runs on Windows 7 with an intuitive interface for easy operation and management.
● Reliable Design: Features automatic hood opening, smooth mesh belt transport, and computer-controlled mesh/chain transmission.
● Enhanced Safety Features: Includes a leakage protector, automatic chain lubrication, and visual/audio alarms for operational safety.
● Power Failure Protection: Built-in UPS and delay shutdown system safeguard against power outages.
● Efficient Heating and Monitoring: ERSAs innovative heating mode, independent temperature control, quick cooling, real-time temperature monitoring, and password-protected operations ensure uniform heat distribution and security.

Technical Parameters

Number of Heating Zone : Top 8 / Bottom 8
Number of Cooling Zone : 2 (Top 2, Bottom 2)
Heating Passage : 2955mm
Heating Style : Hot Air
Cooling Style : Forced Air Cooling
Exhaust Volume : 10m³/min * 2 Exhaust
Max. Width of Mesh : 500mm
Range of PCB : 50-420mm
Conveyor Direction : L→R (option: R→L)
Process Height : 900±20mm
Conveyor Type : Mesh and Chain
Conveyor Speed : 300-2000mm/min
Auto Lubrication : Standard
Fixed Track : Front Track Fixed (Option: Rear Track Fixed)
PCB Clearance : Top and Bottom 25mm
Power Supply : 5-line 3-phase 380V 50/60Hz (3-phase 220V 50/60Hz)
Start-up Power : 52KW/30KW
Steady Consumption : 6-9KW
Ramp Up Time : 25 mins
Temp. Setting Range : From Room Temp. to 300 C
Temp. Control Method : PID Close Loop Control & SSR Driving
Temp. Control Precision : ±1 C
Data Storage : Process Data and Status Storage (80GB)
Nozzle Plate : Aluminum Alloy Plate
Abnormal Alarm : Abnormal Temperature (Over temp/Low Temperature)
Board Dropped Alarm : Tower Light: Amber-warming, Green-normal, Red-abnormal
Dimension (LWH) : 5300x1300x1450mm
Weight : 850/1950kg
