The CNC-4030 is a versatile and efficient machine designed for PCB prototyping and small-scale manufacturing. With its precise control and robust build, it ensures accurate and consistent results for a variety of applications. Its user-friendly interface and adaptability make it an excellent choice for professionals and hobbyists seeking reliable performance in PCB design and production.
| ● Effective Work Schedule: 400mm × 300mm × 100mm, perfect for precision machining. |
| ● High Spindle Performance: 800W spindle with circulating water cooling and a speed of 24,000 RPM. |
| ● Mechanical Structure: CNC-processed aluminum body with embedded gantry movement and integrated motion crossbeam. |
| ● Versatile Processing Capability: Supports DXF, EPS, PLT, STL, IGS, STEP, NC, and G file formats. |

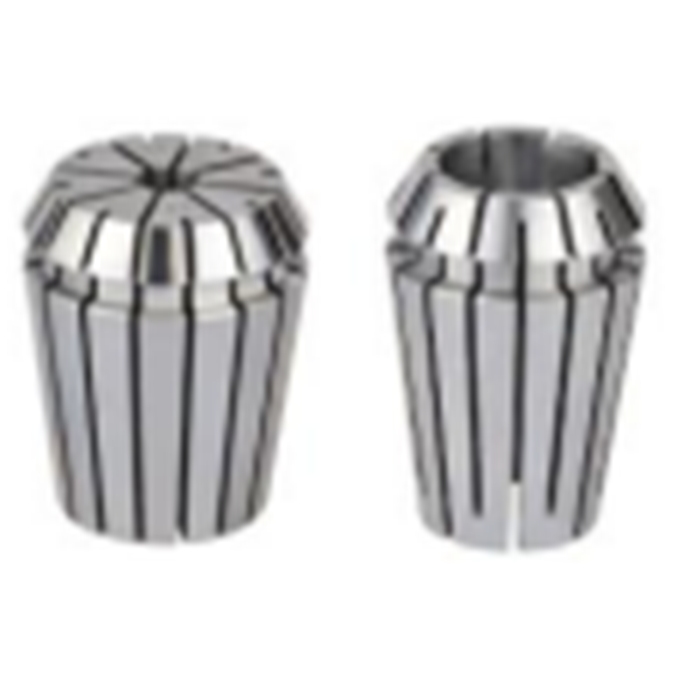

| ● Tool Compatibility: ER11 collet supports tool diameters ranging from 1mm to 7mm. |
| ● Excellent Repeatability: ±0.02mm ensures high accuracy in repeated tasks. |
| ● Stepping Motor: Closed-loop Type 57 3A motor for reliable operation. |
| ● Four-Axis Expansion: Optional A-axis support for advanced machining flexibility. |
| ● Working Voltage: Operates on AC220V 50-60Hz, suitable for most standard setups. |
| ● Material Versatility: Processes wood, acrylic, electric boards, plastics, carbon fiber, aluminum, brass, and more. |
| Product Brand | : | CNC4030 |
| Product Model | : | CNC4030-800W |
| Effective Work Schedule | : | 400mm*300mm*100mm |
| Table Size | : | 540mm*400mm |
| Body frame | : | 690*620*650mm |
| Controller | : | 420*270*180mm |
| Spindle Power and Cooling | : | 800W/Circulating water cooling |
| Spindle Speed | : | 24000rpm |
| Tool Installation Diameter | : | ER11 1-7mm |
| Maximum Processing Speed | : | ≤6000mm/min |
| Feed Height | : | 150mm |
| Repeatability | : | ±0.02mm |
| Body Material | : | National standard aluminum |
| Mechanical Structure | : | CNC processing and forming structural module, embedded gantry movement, integrated motion crossbeam, workbench aluminum material thickness 20mm |
| Processing file Format | : | DXF/EPS/PLT/STL/IGS/STEP/NC/G |
| Working Voltage | : | AC220V 50-60Hz |
| Four Axis Expansion | : | Support A-axis（Optional） |
| Stepping Motor | : | Closed loop, Type 57 3A |
| Limit Switch | : | Magnetic encoder electronic limit (can set starting and ending points) |
| Lead Screw Model | : | High precision 1605 ball screw |
| Software | : | MACH3 |
| Slide Rail | : | X/Y: 20mm chrome plated and hard optical axis Z:16mmProduct Model |
| Spindle Rotation Direction | : | Forward / Reverse |
| Interface | : | 25 pin parallel port |
| Expand Signal Interface | : | 1 Output |
| Illumination | : | LED Lighting |
| Frequency Converter | : | DFL Frequency Converter |
| Motor Drive | : | Self-developed driver card |
| Workable Load-Bearing Capacity | : | ≈20kg |
| Bare Weight | : | ≈38kg |
| Processing Materials | : | Wood, acrylic, electric board, epoxy resin, plastic, carbon fiber, aluminum alloy, brass etc |
