SP-3040

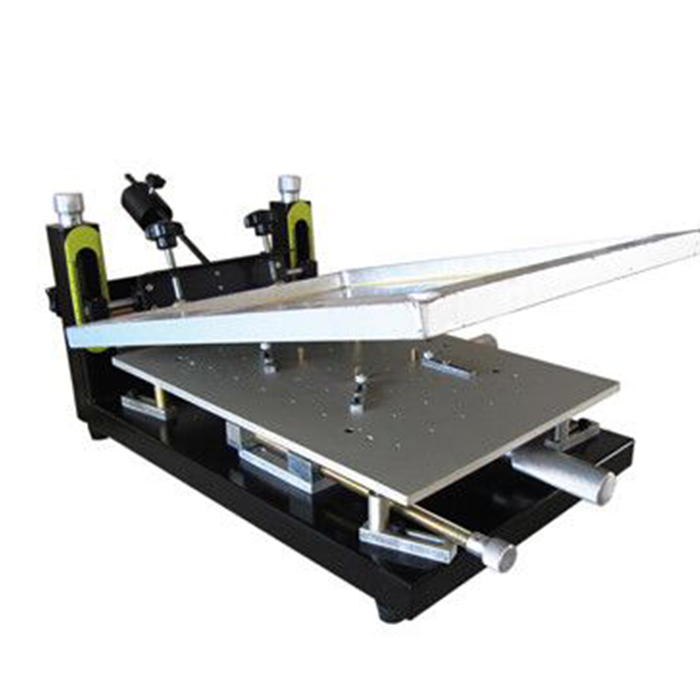

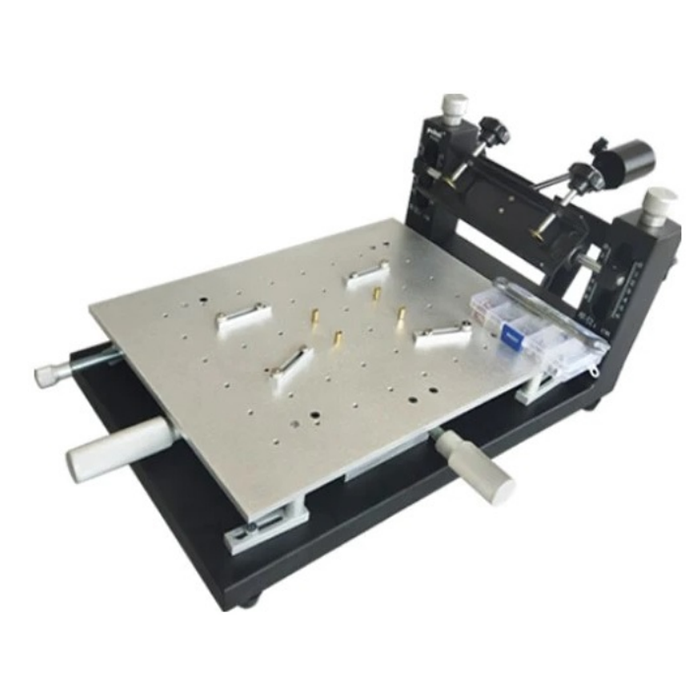

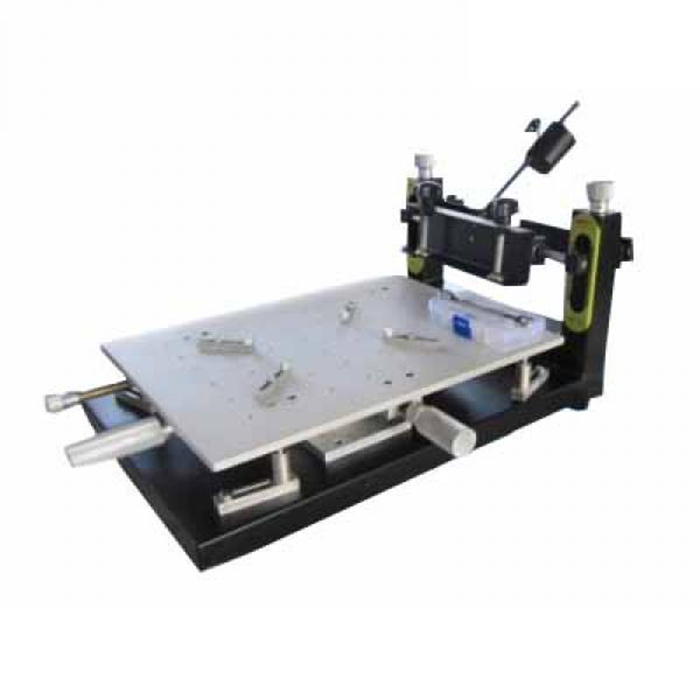

The SP-3040 is a supporting device widely used in the SMT electronic mounting and welding process. It is specifically designed for pre-preparing solder paste on PCB pads, making it an ideal choice when a smaller quantity of soldering PCBs is required. This process helps streamline the next step by facilitating the precise and efficient mounting of patch components. Compact and user-friendly, the SP-3040 ensures high printing accuracy and reliability, making it an essential tool for small-scale production and prototyping in the electronics manufacturing industry.

Features

● The platform can be rotated 30 degrees at most, and the precision can be kept all the way when repeat works. Easy to locate PCB board, high flexibility ensure high printing precision. The brackets using the bolt bar to adjust the height, convenient for controlling the thickness of PCB.
● Rotatable Platform: The platform can rotate up to 30 degrees while maintaining precision during repeated tasks.
● PCB Positioning Modes: Offers flexibility with outside or reference hole PCB positioning.
● Adjustable Brackets: Bolt bar height adjustment allows convenient control of PCB thickness.
● Compact Design: Overall dimensions of 580 × 320 × 259 mm make it suitable for efficient space usage.
● High Printing Precision: Ensures easy PCB board location and consistent accuracy for small-scale soldering tasks.

Technical Parameters

High Precision Printer : SP-3040
Overall Dimensions L*W*H) : 580*320*259(mm)
Platform Size : 300*400(mm)
PCB Size : 270*370(mm)
Stencil Size : 370*470(mm)
Platform Height : 180mm
PCB Positioning Mode : Outside/ Reference Hole
Weight : 12.7kg
