NeoDen N10P
Vertical Standalone SMT Pick & Place Machine
Supports PCB sizes up to 1500mm x 450mm.
Automatic nozzle changes with 39 positions for faster, flexible placement.
IC camera enhances image quality and auto-calibration.
Auto nozzle height calibration.
Added throw box for easier material recycling.
Increased feeder capacity to 80 for more simultaneous feeds.
Suction air pressure measurement for stability and efficiency.
Enhanced software and new design for better usability and brand identity.

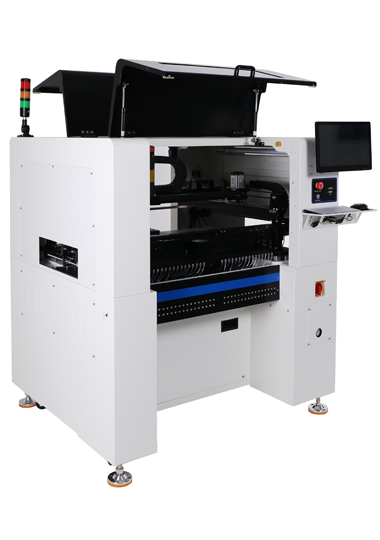

NeoDen N10
Vertical Standalone SMT Pick & Place Machine
8 synchronized nozzles for high-speed, accurate placement.
Stable Linux OS for reliable machine operation.
Ball-screw system enhances speed, durability, and reduces noise.
Dual mark cameras enable precise end-feeder calibration.
High-res, high-speed camera improves machine efficiency.
Ethernet interface ensures stable, flexible signal communication.
Closed-loop servo control offers precise feedback and accuracy.
Automatic calibration for pneumatic feeders and PCB location.
NeoDen N8
Vertical Standalone SMT Pick & Place Machine
8 synchronized nozzles for fast, accurate placements.
Secure, stable Linux OS for reliable operation.
Dual mark cameras enhance end-feeder calibration.
High-res, high-speed camera boosts machine speed.
Ethernet interface for stable, flexible communication.
Closed-loop servo control for precision and accuracy.
Auto-calibration for pneumatic feeder positions.
PCB location auto-calibration ensures precise placement.

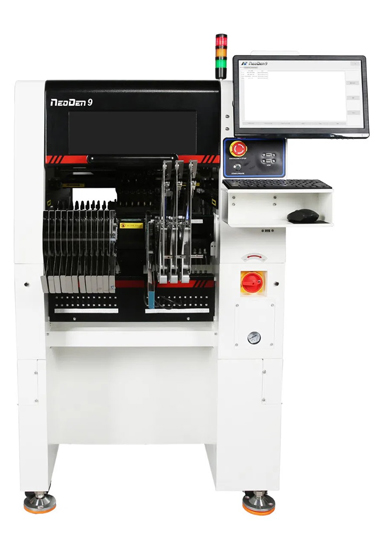

NeoDen N9
Vertical Standalone SMT Pick & Place Machine
Neoden Linux software allows flexible upgrades and faster training.
Independent control of 6 heads with servo motors for better torque.
Supports both electric and pneumatic feeders with auto track handling.
Equipped with patented sensor technology for enhanced accuracy.
C5 precision screw and magnetic scale for 0.018mm accuracy.
Self-developed flying camera with CMOS sensor for fast recognition.
Thru-beam sensors on front and rear feeders for precise alignment.
Easy-to-use interface optimized for efficient operation.

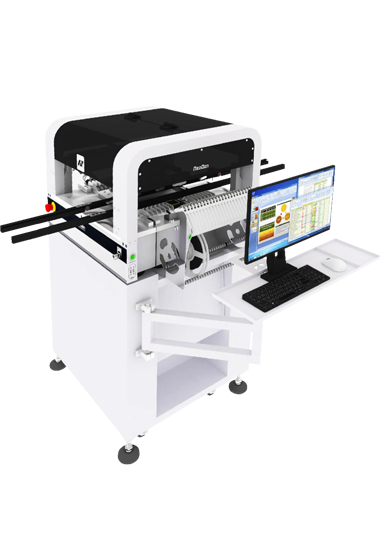

NeoDen N4+
Desktop Version SMT Pick & Place Machine
Automatic conveyor for up to 1.2m PCBs, synchronized with printer and oven.
Industrial host with solid-state drivers for stable and protected performance
High-speed flying camera for quick, precise identification and calibration.
Four 360° rotating heads for fast, smooth component mounting.
Dual cameras for simultaneous multi-component inspection.
Universal port for external conveyor integration.
Brushless electric feeders for accurate, error-free feeding.
Vacuum detection and vision inspection for reliable handling.

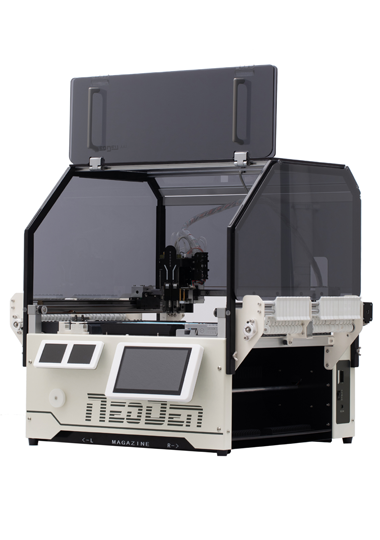

NeoDen YY1
Desktop Version SMT Pick & Place Machine
Ultra-fast, user-friendly touch interface.
Automatic nozzle changer.
High-speed HD camera.
Reel feeder magazines.
Dual head with vacuum indication.
Loose component tray.
Linear needle module.
Stick vibrating feeder.
NeoDen IN12C
Convection Conveyorized Multi Zone SMT Reflow Oven
Built-in smoke filtering for eco-friendly operation and sleek design.
High-integration control system for quick response and low failure rates.
Precise heating module for accurate temperature control and energy efficiency.
Hot air convection for superior soldering performance.
Aluminium heating plate minimizes temperature deviation.
Insulated casing for effective heat control.
Smart temperature sensors ensure stability.
4-way monitoring system provides comprehensive data feedback.
NeoDen IN8C
Convection Conveyorized Multi Zone SMT Reflow Oven
Built-in fume filtration system for effective gas removal and eco-friendly design.
High-integration control system ensures quick response and low failure rates.
Unique heating module for precise temperature control and uniform heat distribution.
Hot air convection provides excellent welding performance.
High-performance aluminium heating plate enhances energy efficiency.
Low power consumption reduces operational costs.
Easy maintenance design for user convenience.
Stylish appearance suited for high-end environments.
NeoDen IN6C
Convection Conveyorized Multi Zone SMT Reflow Oven
Heat convection for superior soldering performance.
Stores 16 files with Celsius to Fahrenheit conversion.
Smart control stabilizes temperature within ±0.02°C.
Built-in smoke filter for eco-friendly operation.
Aluminium heating plate ensures < 2°C temperature deviation.
Insulated casing keeps temperature below 40°C.
ESD tray for easy PCB collection.
Compact design with 6 temperature zones.

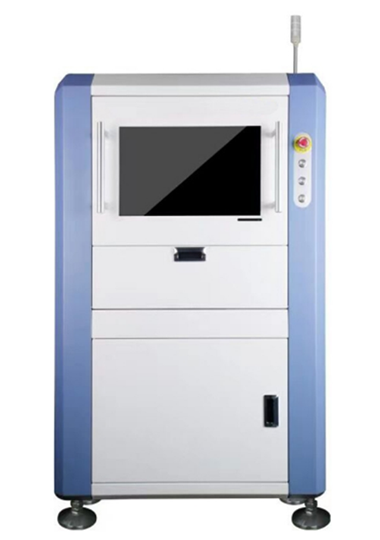

NeoDen ND880
Automatic Optical Inspection Machine (Offline)
Image Recognition: Automatic parameter adjustment for inspections.
SPC Function: Records and analyses quality data.
PCB Transmission: Bottom-up fixing with automatic width adjustment.
Stencil Printing: Inspects solder availability and alignment.
Component Defects: Identifies missing or misaligned components.
DIP Issues: Detects missing, damaged, or inverted parts.
Soldering Defects: Monitors solder excess/missing and bridging.
Quality Analysis: Provides overall production and quality insights.
NeoDen ND800
Automatic Optical Inspection Machine (Online)
Applications: Inspects stencil printing and pre/post soldering processes.
Items Inspected: Stencil, component, soldering defects, and DIP issues.
Calculation Methods: Machine learning and image processing techniques.
Mode: PCB coverage with array and defect marking.
SPC Function: Records and analyses production quality data.
Optics: 5MP camera (20MP optional), custom resolutions.
Lighting: Multi-channel colour options.
Minimum Size: Inspects 0201 chips and 0.3 pitch ICs.
NoeDen ND-1
Fully Automatic Solder Paste Printer
Precision: ±12.5 microns repeat accuracy (±0.0005”) @6σ, Cp ≥ 2.0.
Adjustment Platform: UVW module drive for stability.
Stepper Motor Drive: Programmable for flexible printing pressure.
PCB Orientation: Flat belt and stepper motors for adaptive speed.
Cleaning System: Automatic dry, wet, and vacuum cleaning.
Clamp System: Fits various mesh frame sizes with auto-positioning.
Electric Control: Modular circuits for safety and maintenance.
User Interface: Windows XP with graphical diagnostics and alarms.
